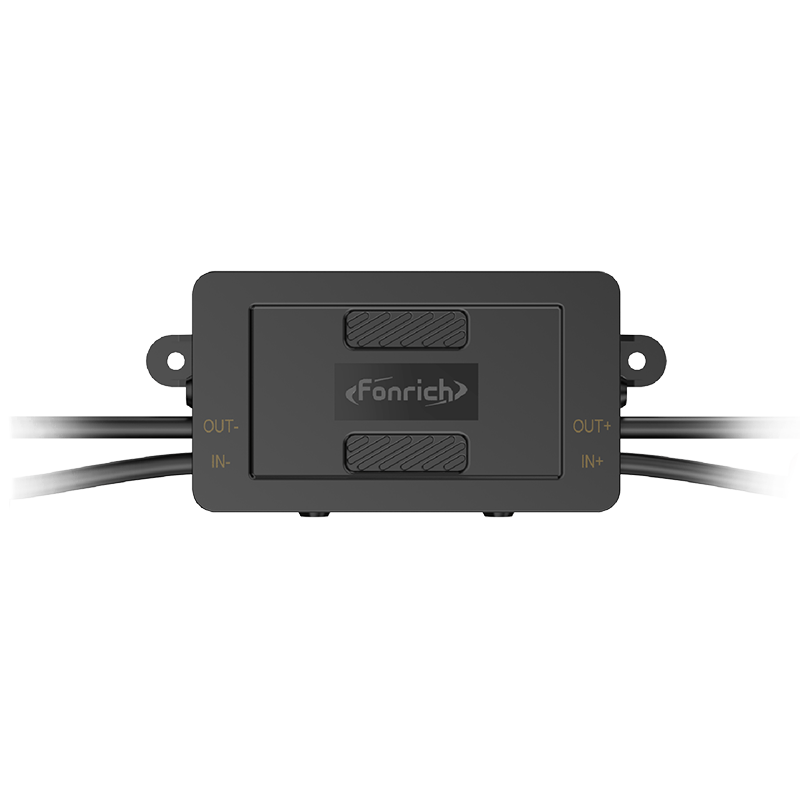

FR-PVMS-TH Series Comparison
Rapid Shutdown Technical Specifications and Features Overview

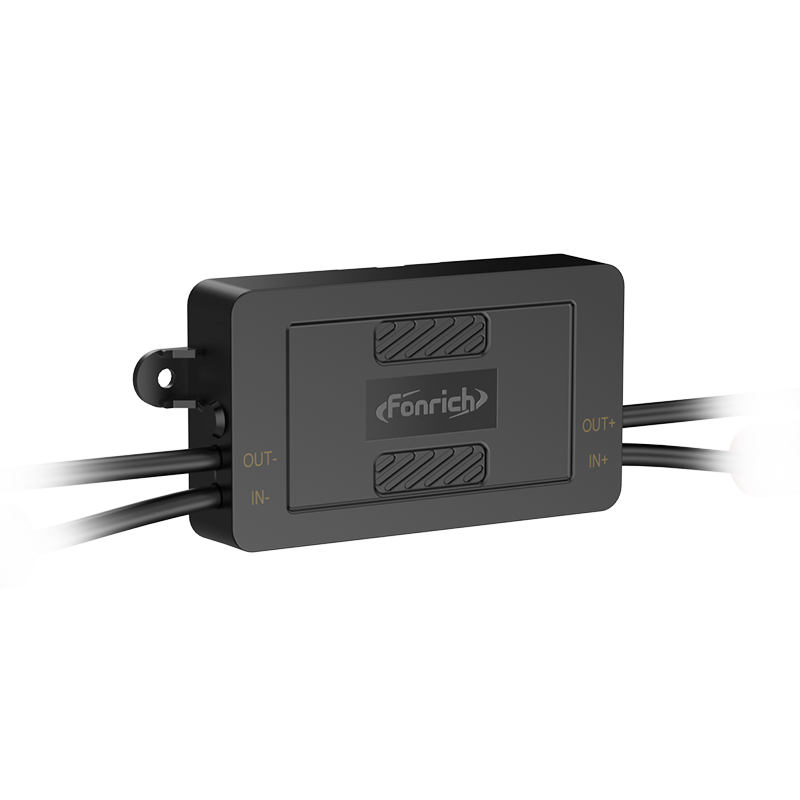

FR-PVMS-THQx is an excellent choice for cost-sensitive, space-saving deployments that still demand high safety and intelligence. Compared to THCx series, THQx models also offer rapid address configuration, new-generation module-level arc fault detection and AFCI arc protection.
Main Features
- Detects series and parallel arc faults quickly extinguish arcs and effectively prevent fires.
- Triggered when Smart Logger loses power or manually shuts down, to ensure maintenance and fire safety.
- Including voltage, power, power generation, temperature, and other snap data.
- 1600m long communication distance.
- Designs for two modules, highly cost effective.
- Real-time fault information on abnormality.
Technical Specifications Comparison
| Model | FR-PVMS-THCB | FR-PVMS-THQB | FR-PVMS-THCJ | FR-PVMS-THQJ |
|---|---|---|---|---|
| Supported PV channel/modules | 1/2 | 1/2 | 1/2 | 1/2 |
| Operating voltage range | 120Vdc | 120Vdc | 140Vdc | 140Vdc |
| Maximum continuous input/output current ① | 20Adc | 20Adc | 23Adc | 23Adc |
| Arc fault features ③ | - | PV module arc fault detection | - | PV module arc fault detection |
| Maximum system Voc | 1500Vdc | |||
| Protection rating | IP68 / NEMA Type 6P | |||
| Operating ambient temperature range ② | -30°C~85°C | |||
| Communication technology | Power Line Carrier (PLC). Maximum cable loop length 1600m. | |||
| Safety standards | UL 3741 | |||
| Monitoring platform features | Module-level Asset Management, 2D & 3D Data Display, Multi-module Comparison, Real-time Status, Energy Management, Smart Fault Analysis | |||
Important Notes:
① The actual operating current of PV modules must not exceed product's maximum continuous input/output current
② When ambient temperature reaches range of 70~85°C, product operates in overtemperature protection mode
③ Models with arc fault features comply with EN IEC 63027:2023
② When ambient temperature reaches range of 70~85°C, product operates in overtemperature protection mode
③ Models with arc fault features comply with EN IEC 63027:2023

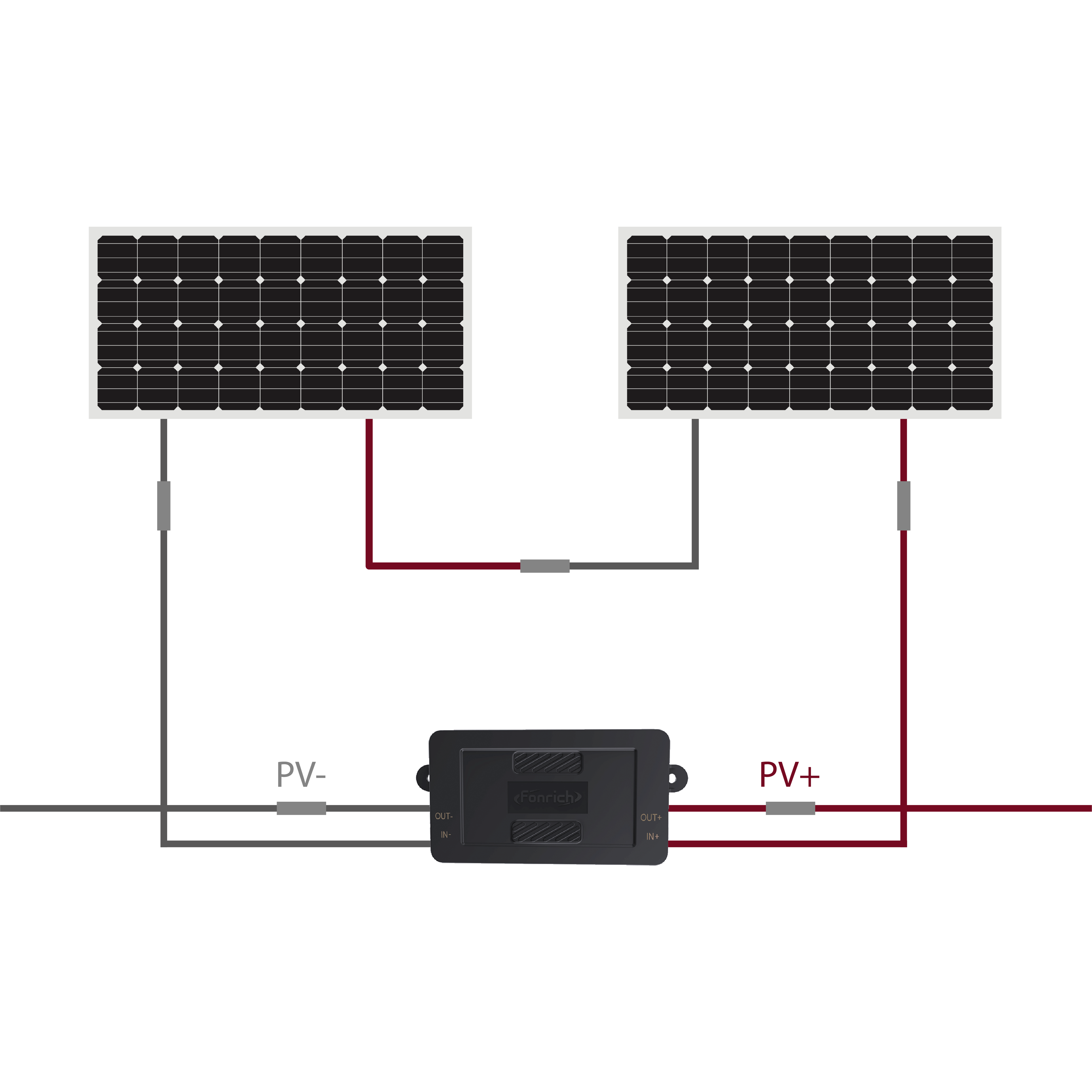

Rapid Shutdown Device Wiring Diagram
Fonrich Smart Safety Protector (RSD)
When installing a PV string with an odd number of PV modules, please refer to second row of diagram and only connect one PV module to relevant Smart Safety Protector.
Ensure that PV cables between PV module and inverter are protected by an additional protective cable tray.
Important Notes:
Fonrich does not provide emergency stop switch and temperature sensor. Not standard parts (i.e., emergency controller) by Fonrich, contact us in advance if needed.
